Assembling the Top Plate

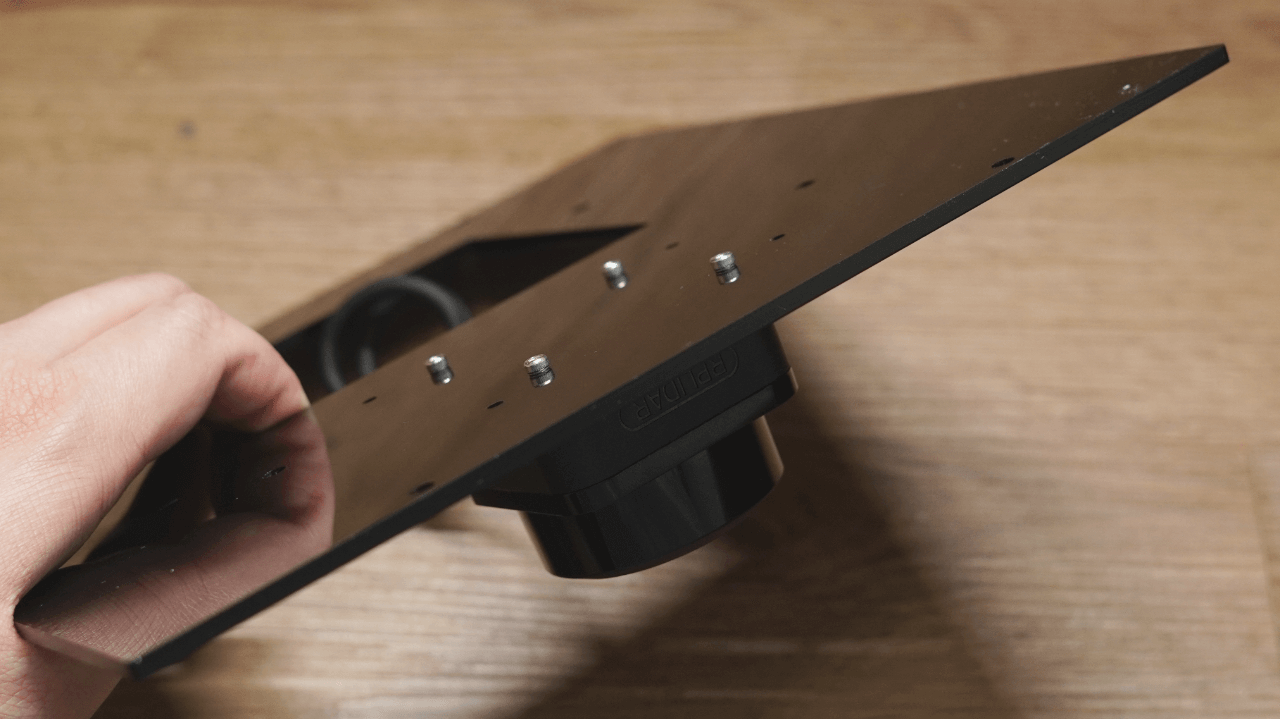

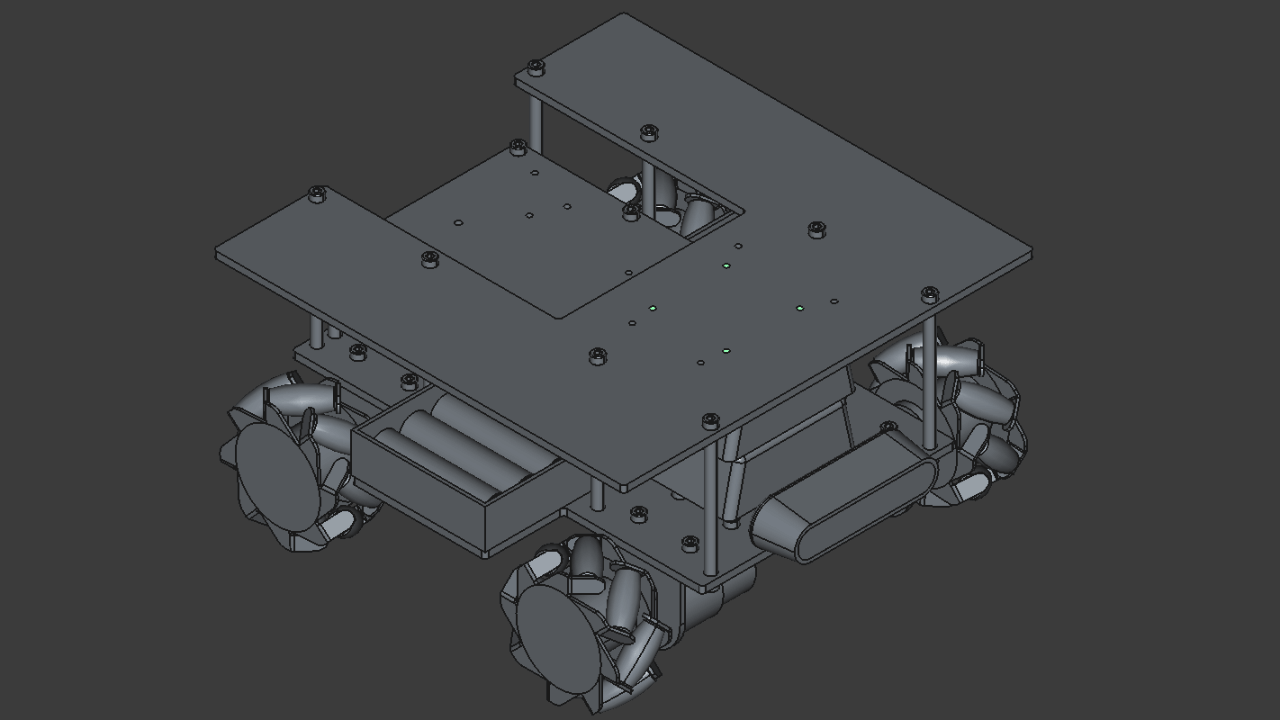

Place the LiDAR on the top plate, insert M2.5 screws, and tighten them with a hex key. Connect the LiDAR cable.
The screws should be inserted through the holes highlighted in green.

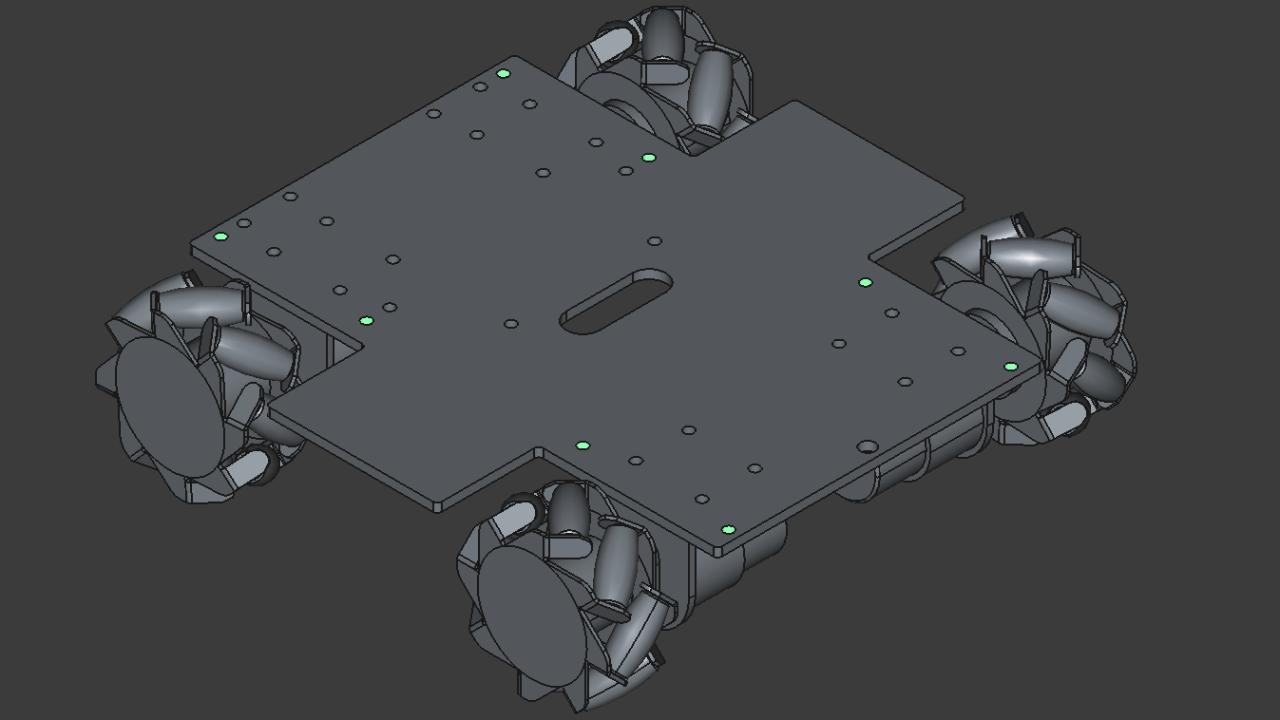

Insert M4 standoffs on the bottom plate, then insert M4 screws and tighten them with a hex key.
The screws should be inserted through the holes highlighted in green.

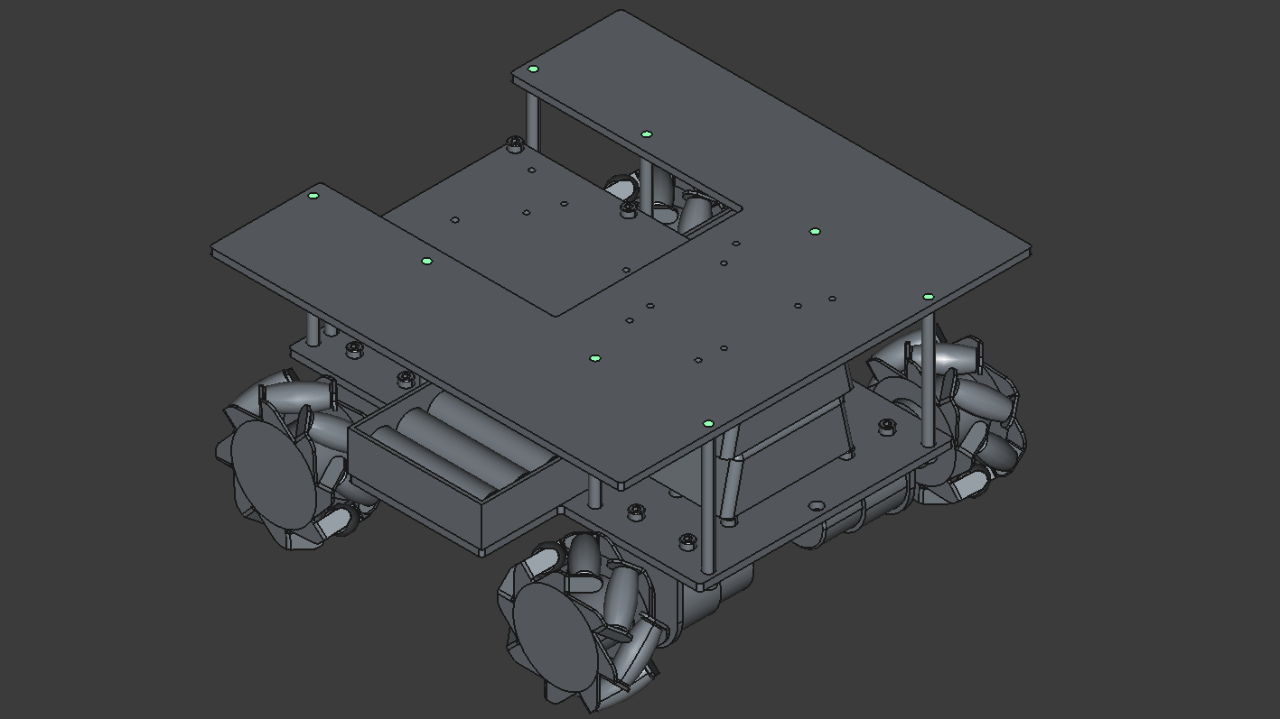

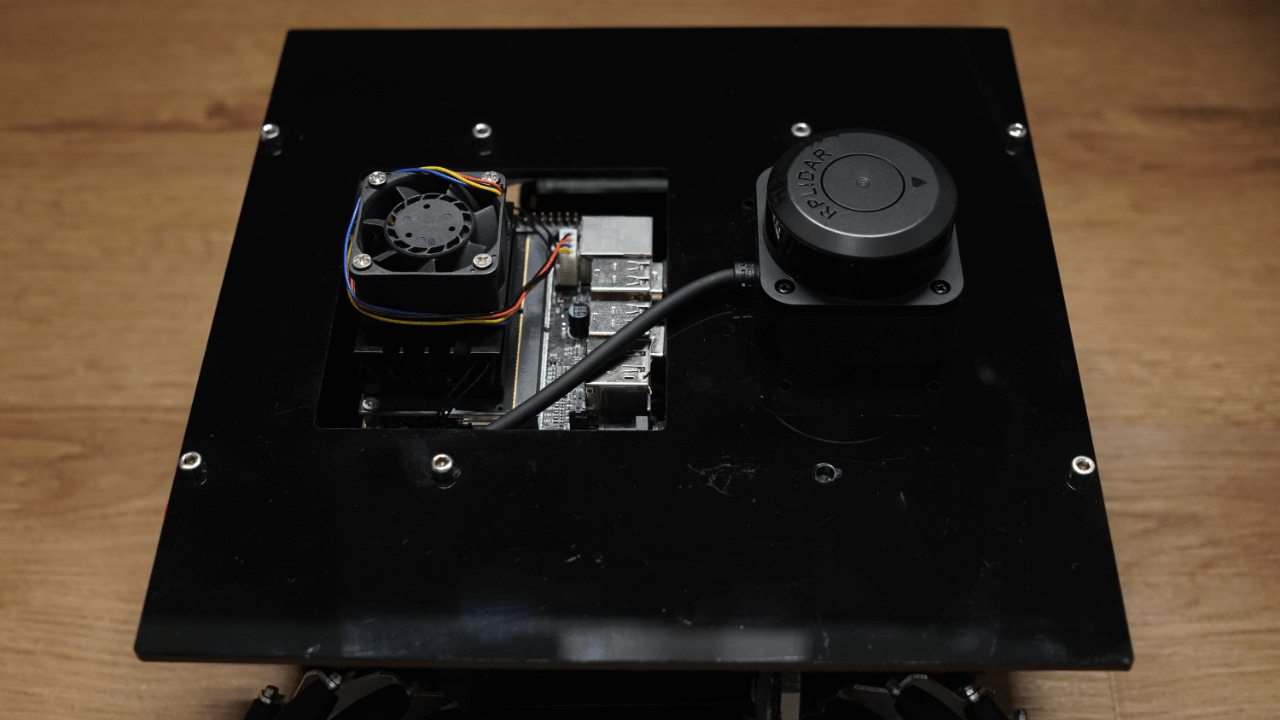

Position the top plate onto the bottom plate, insert M4 screws, and tighten them with a hex key.
The screws should be inserted through the holes highlighted in green.
Camera (Optional)
Place the camera at the front of the chassis and secure it using a 1/4-inch tripod screw.
Power Supply
Install the batteries for the power supply.
Warning: Ensure that the batteries are installed with the correct polarity.
