Assembling the PC Plate
The installation procedure depends on the type of PC being used. Three types of PC are supported: Nvidia Jetson Nano, Raspberry Pi, and NUC.

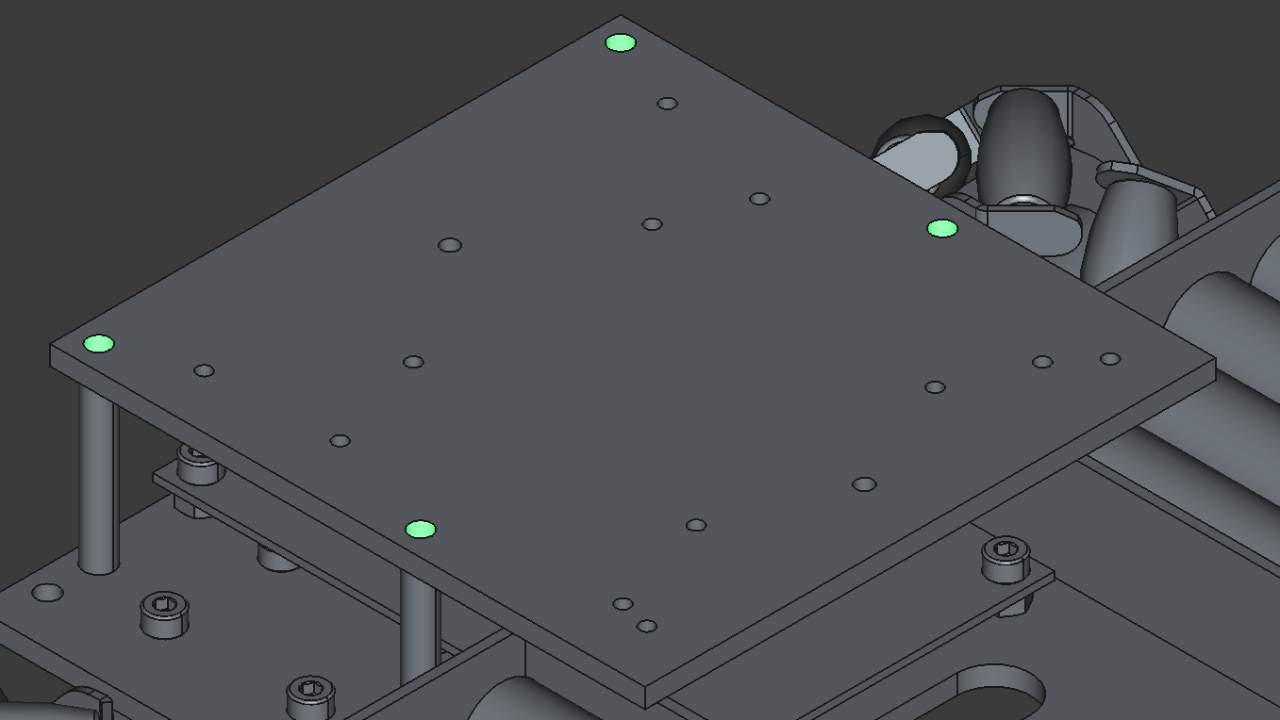

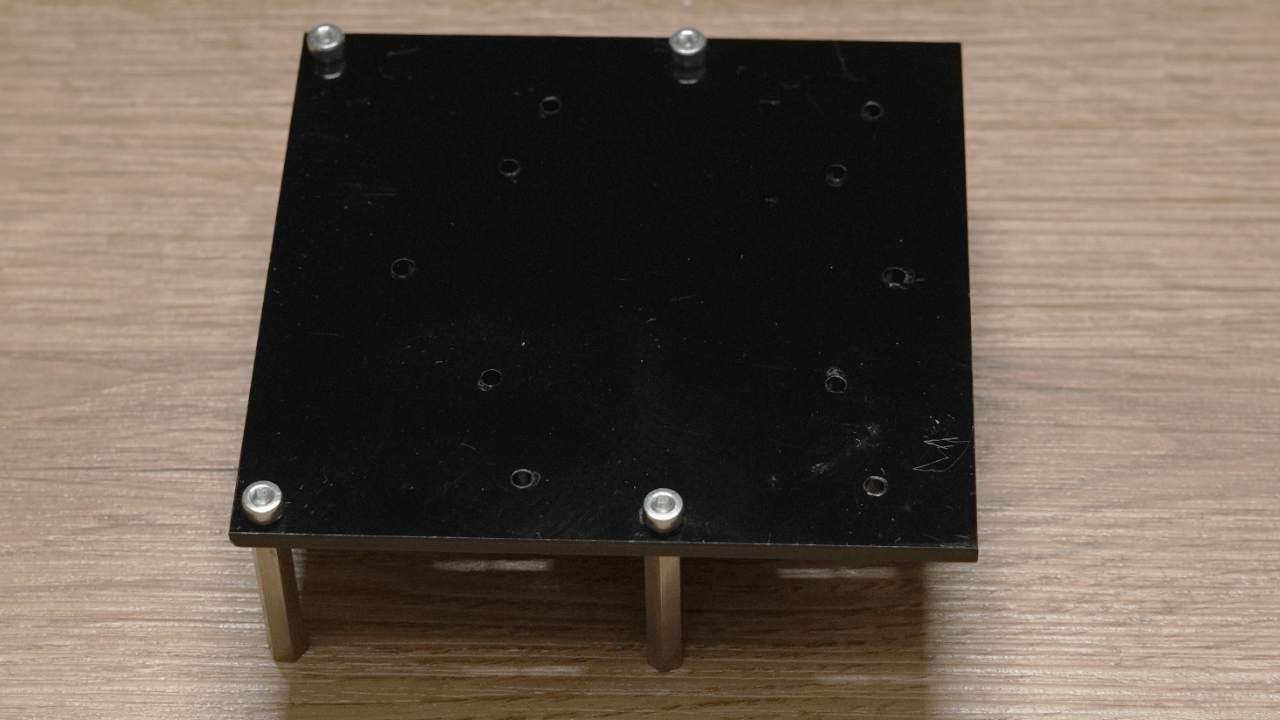

Insert M4 screws through the PC plate into the M4 standoffs and tighten them with a hex key.
The screws should be inserted through the holes highlighted in green.

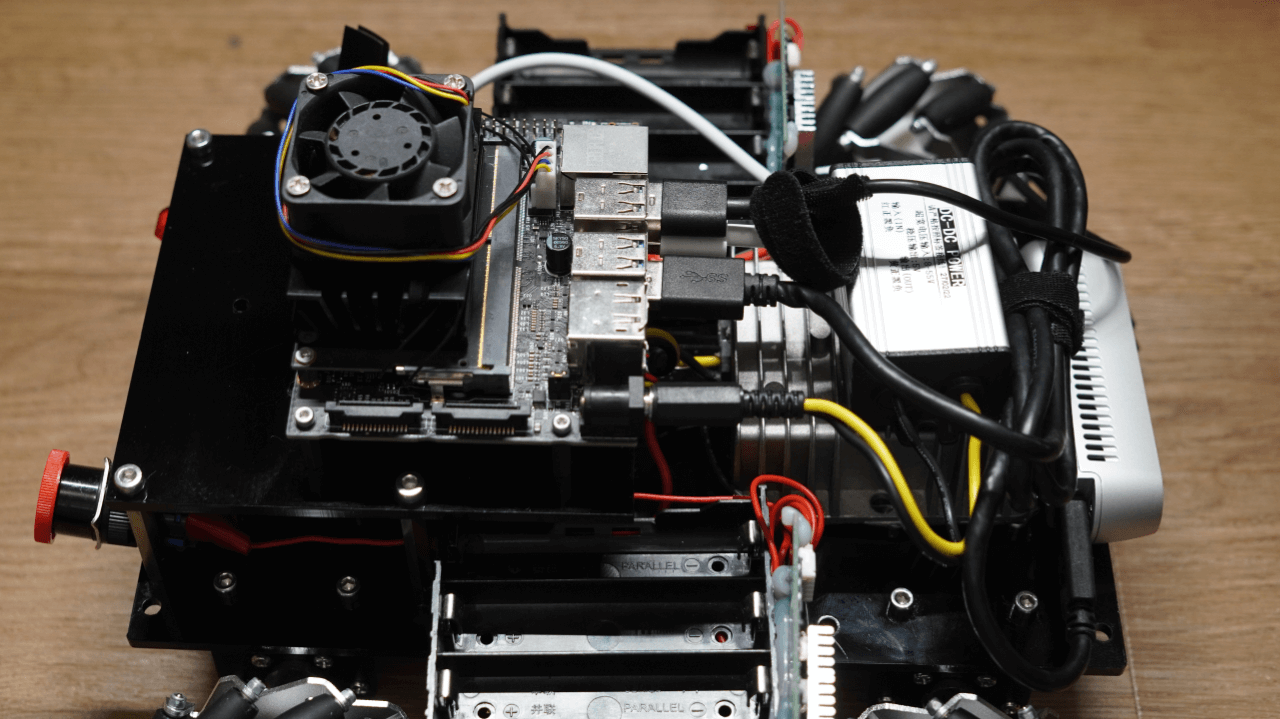

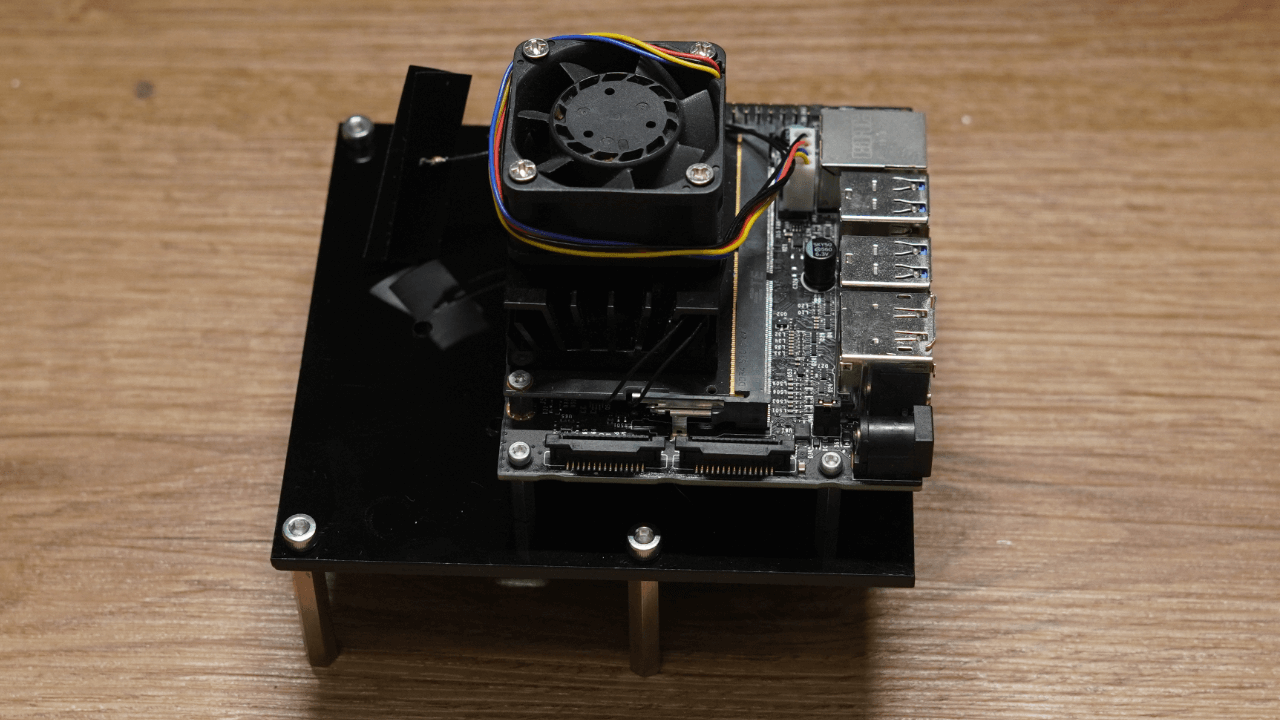

Nvidia Jetson Nano

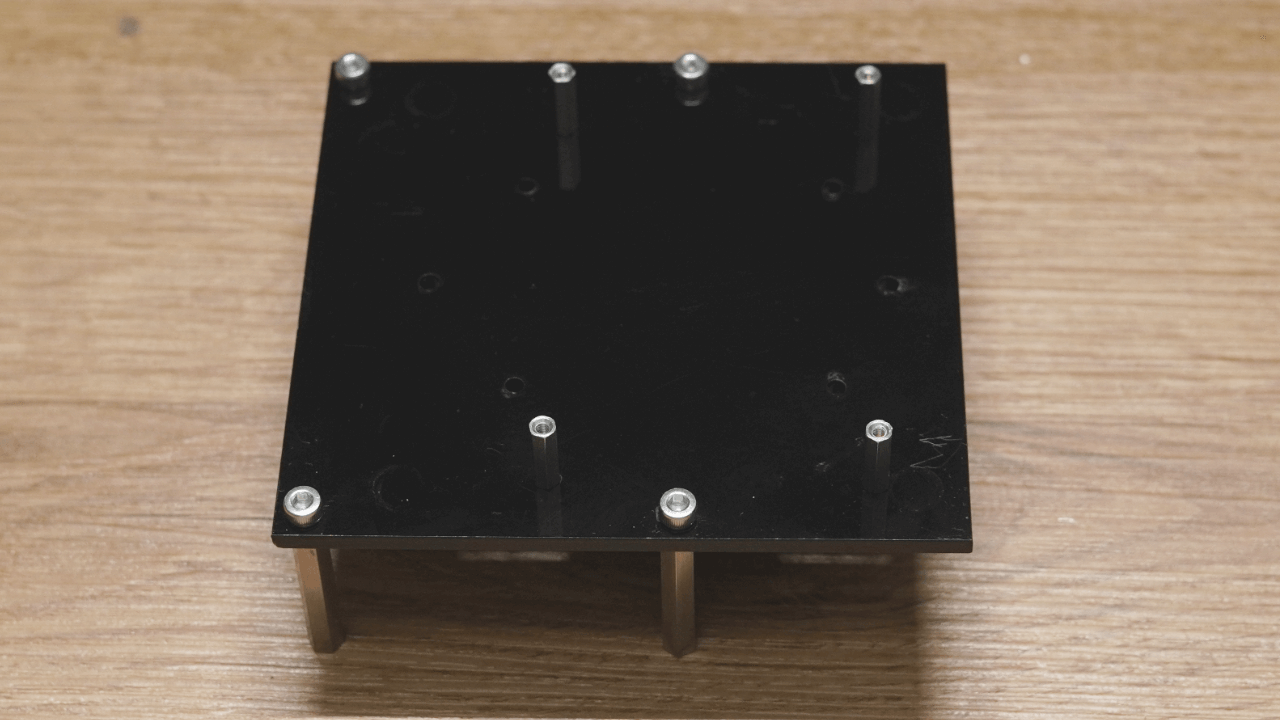

Insert M2.5 screws through the PC plate into the M2.5 standoffs and tighten them with a hex key. The screws should be inserted through the holes highlighted in green.

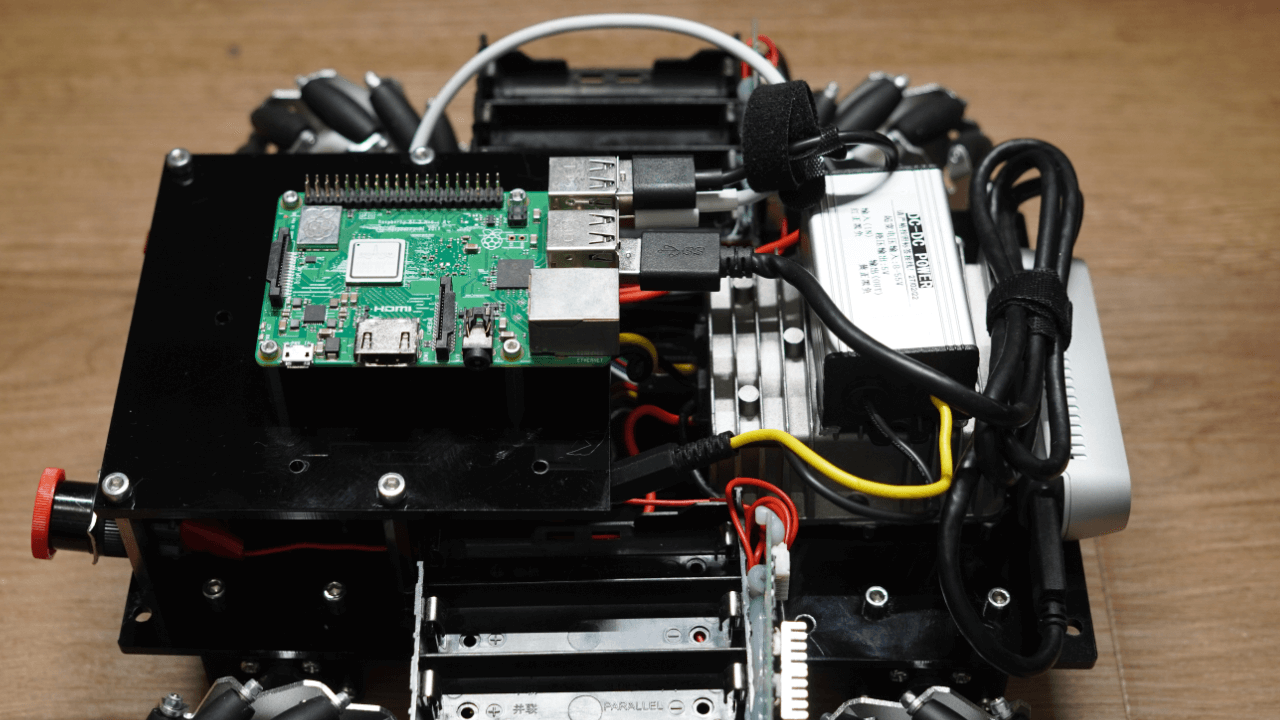

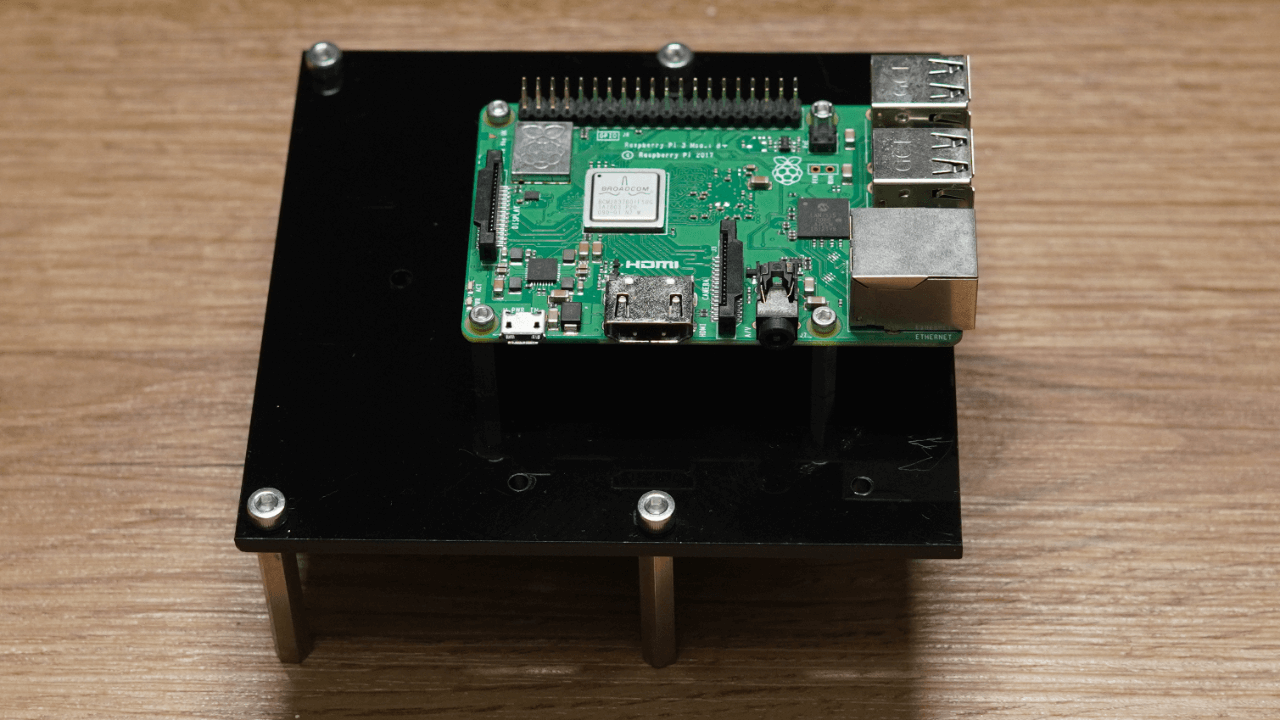

Raspberry Pi

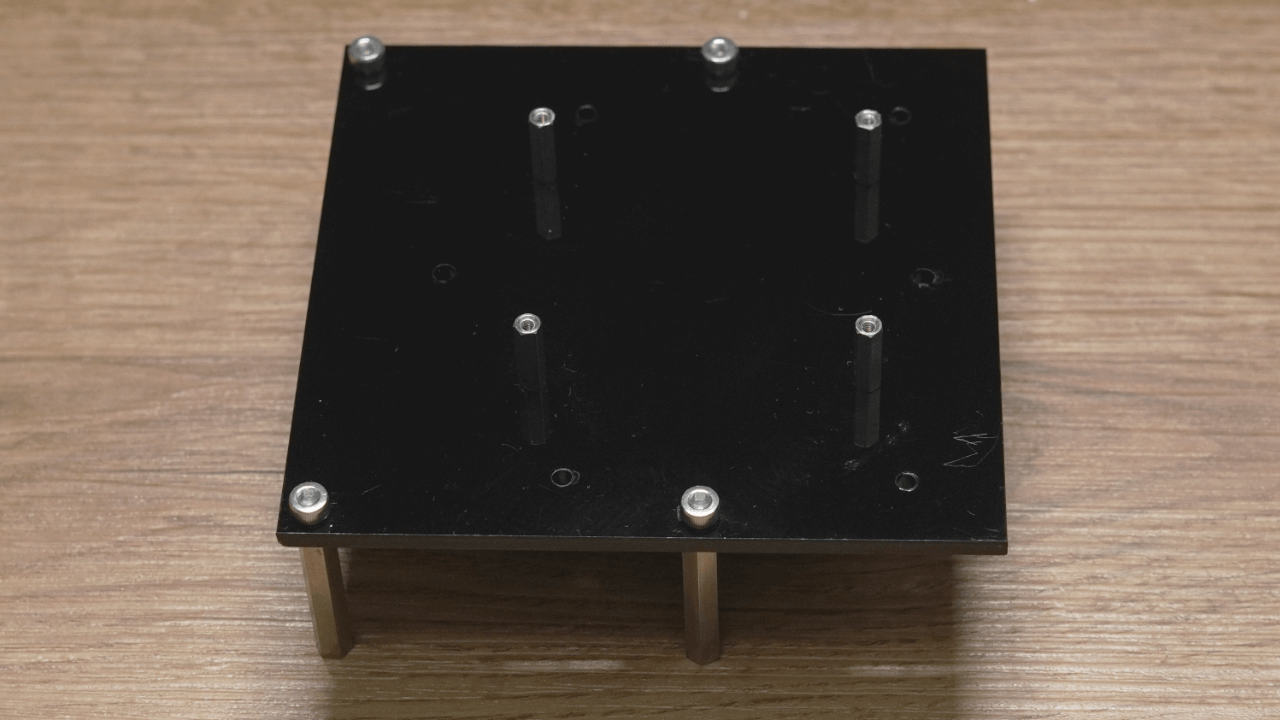

Insert M2.5 screws through the PC plate into the M2.5 standoffs and tighten them with a hex key. The screws should be inserted through the holes highlighted in green.

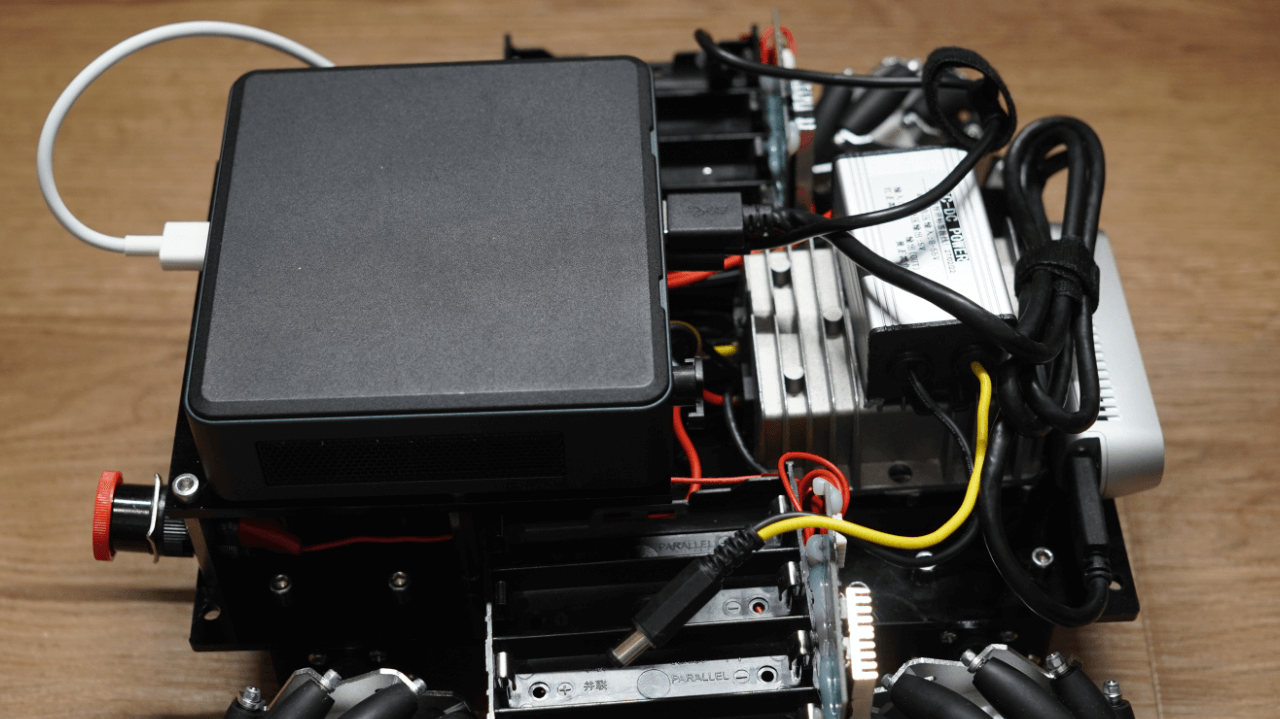

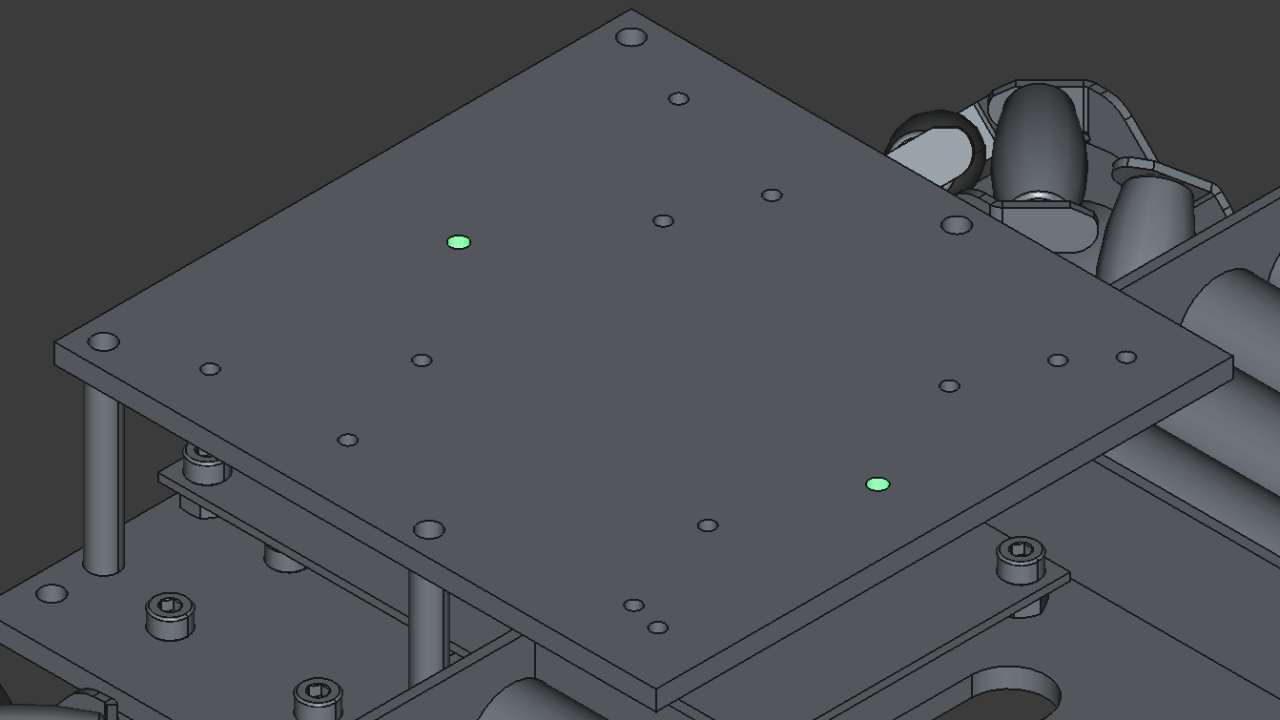

NUC with Case

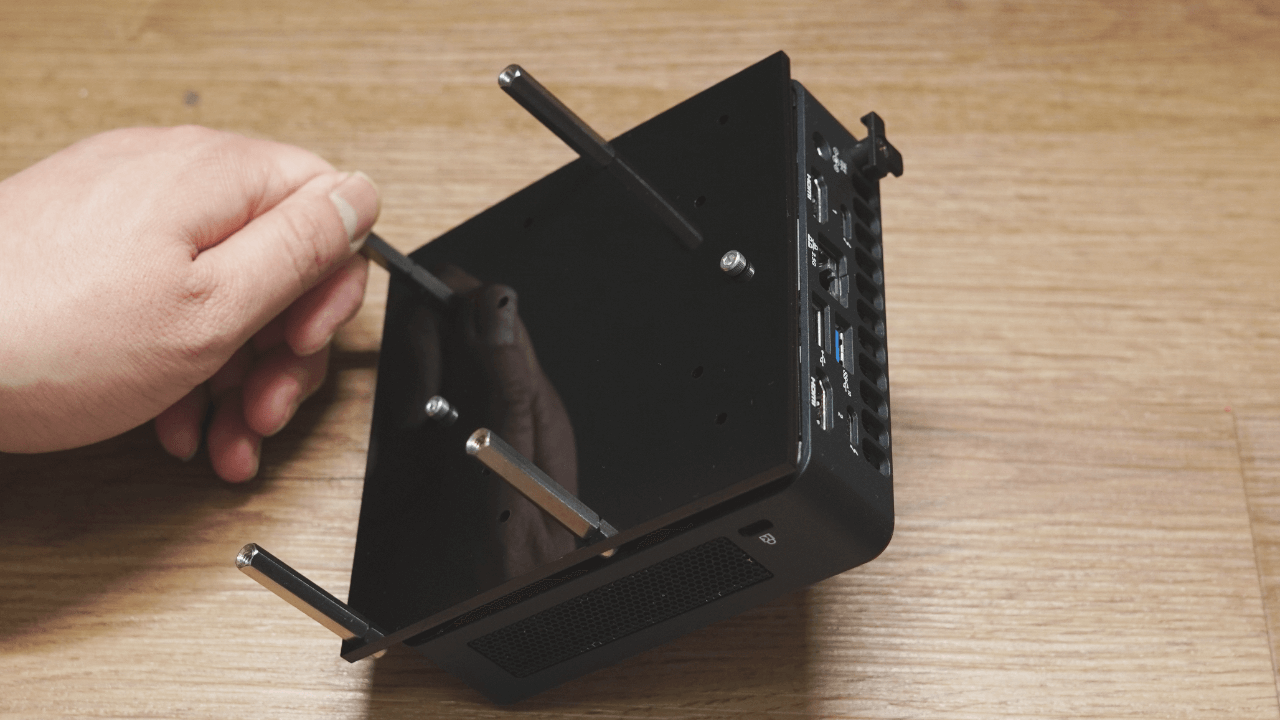

Place the NUC on the PC plate and secure it using M3 screws from the underside of the NUC, tightening with a hex key.
The screws should be inserted through the holes highlighted in green.
NUC without Case

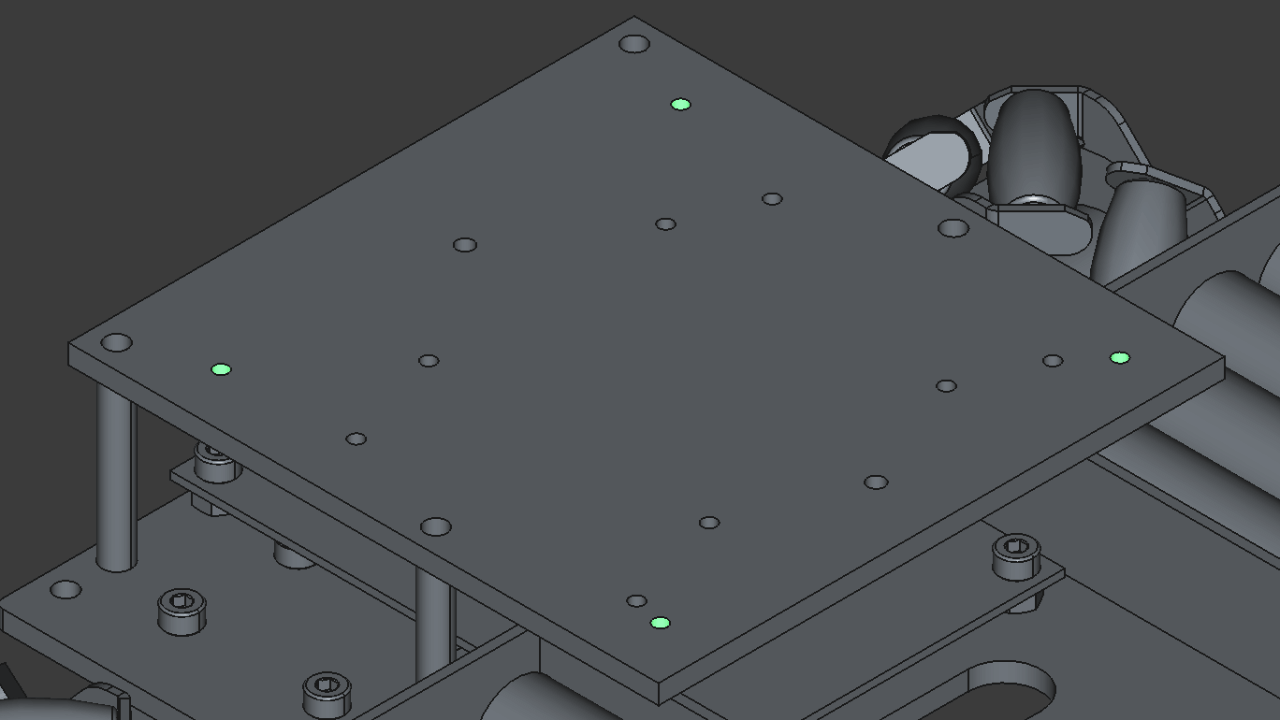

Insert M2.5 screws through the PC plate into the M2.5 standoffs and tighten them with a hex key. The screws should be inserted through the holes highlighted in green.
Installing the PC Plate

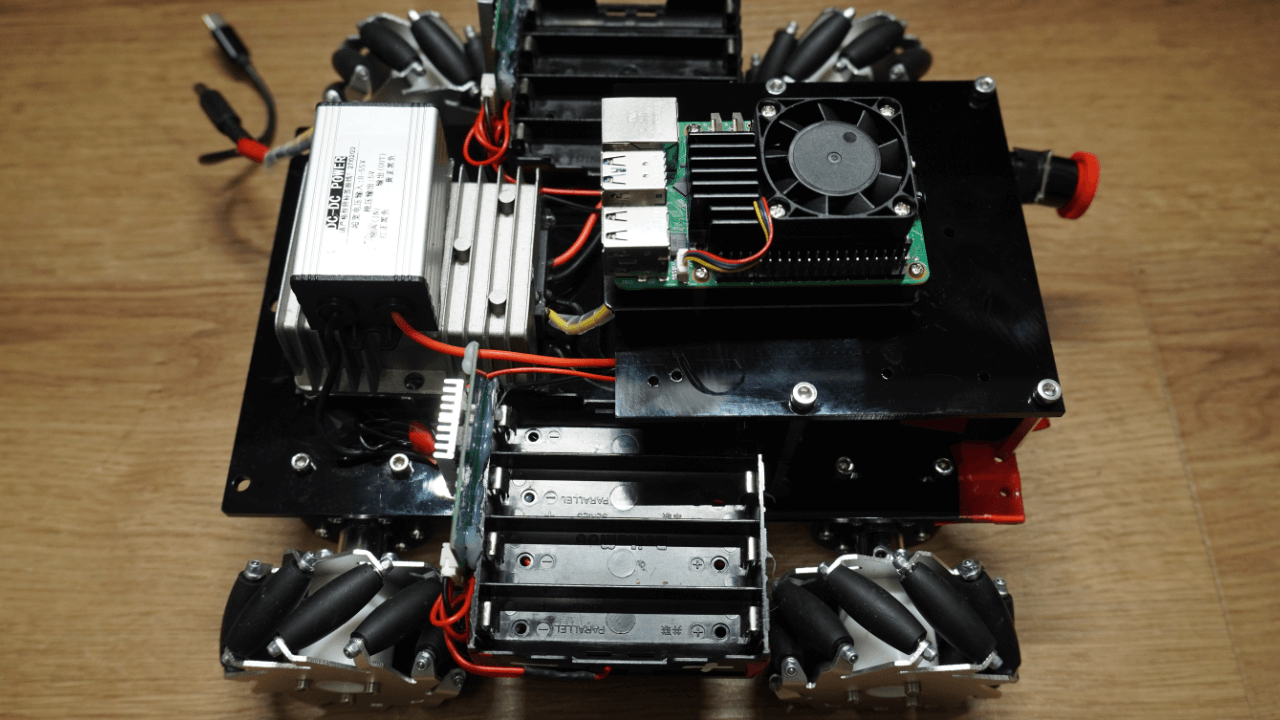

Secure the PC plate to the bottom plate using M4 screws and a hex key. Connect the USB cables for the controller board and LiDAR.
The screws should be inserted through the holes highlighted in green.
